D200 Series Protects AC Electrical Panels Rated 600A and Higher
DITEK’s 200kA industrial surge protectors are designed to provide protection to AC power systems in the most demanding environments, and are recommended for electrical panels rated at 600A and up. The D200 Series incorporates individually fused components for maximum performance and protection. Available in a wide range of voltage configurations, the compact D200 is an excellent choice for electrical panel protection.FEATURED PRODUCT

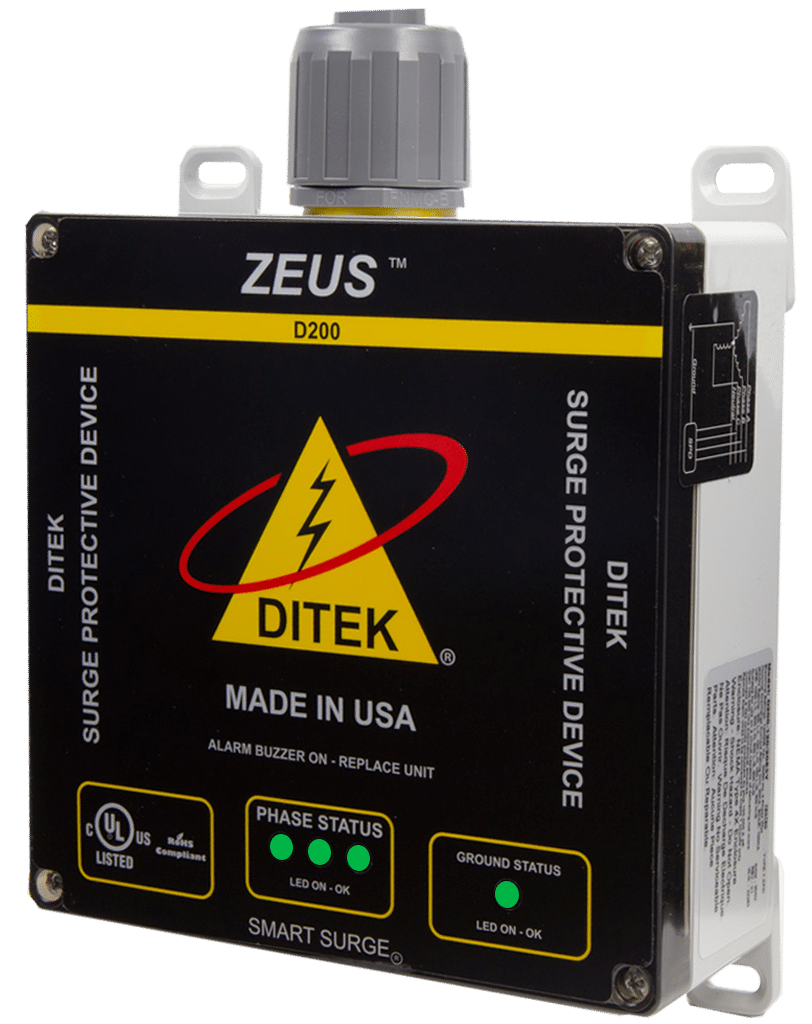

D200 Series : D200-277/4803Y
Industrial Surge Protective Device - 200kA/Phase
DITEK's D200 industrial AC power surge protection devices are recommended for electrical panels rated at 600A and up. The D200-277/4803Y protects 277/480VAC three phase wye panels.
- 200,000 Amp surge current rating per phase, 100,000 Amps per mode, ensures long service life
- Compact size enables close mounting to protected panel, minimizing wire length and maximizing performance
- Diagnostic LEDs indicate system power, SPD function and ground status
- Audible Alarm and Dry contacts for remote monitoring of surge protection status
MODELS IN THIS SERIES INCLUDE:
| Model | Service Voltage | Wiring |
| D200-120/2083Y | 120/208V Wye | 4W + G |
| D200-120/2401 | 120/240V Split | 3W + G |
| D200-120/240HL | 120/240V Delta High Leg | 4W + G |
| D200-2403D | 240V Delta | 3W + G |
| D200-277/4803Y | 277/480V Wye | 4W + G |
| D200-347/6003Y | 347/600V Wye | 4W + G |
| D200-4803D | 480V Delta | 3W + G |
