NETS Series Makes Protecting an Ethernet or PoE System Easy

DITEK’s NETS Series is a compact, modular surge protection system for shielded Ethernet, PoE and PoE extender circuits. Available in wall mount cases for 4 or 8 channels, and 1U rack mount enclosures for up to 24 channels, these systems use state-of-the-art circuitry for best-in-breed surge protection.

FEATURED PRODUCT

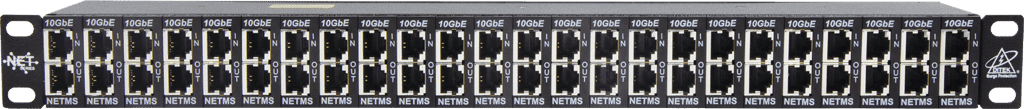

NETS Series : DTK-RM24NETS

Rack Mount Network Surge Protector

The DTK-RM24NETS is a 24-channel, 1U rack mount surge protector that uses state-of-the art circuitry to provide best-in-breed surge protection for shielded Ethernet, PoE and optional PoE extender circuits. The DTK-RM24NETS supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-RM24NETS is ideal for installations with multiple Ethernet cabling feeds that require protection before entering network switches. RMNETS

  • Uses SAD and GDT technologies to provide optimal protection for shielded Ethernet, PoE, PoES and PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • PoE Plus and HiPoE ready for high-wattage applications
  • Optional modules available to support PoE Extender Circuits

 ADDITIONAL MODELS IN THIS SERIES:

DTK-EXTMS

Rapid-Replacement Surge Protection Module

PoE extender circuit protection module for DITEK's NETS and EXTS rack and wall mount devices. Mix and match rapid-replacement modules to protect Ethernet, PoE and PoE extender circuites within the same rack or wall mount housing.

  • Uses SAD and GDT technologies for superior protection
  • Robust 20kA per pair surge current rating
  • Data speeds up to 10GbE without signal degradation

DTK-NETMS

Rapid-Replacement Surge Protection Module

Ethernet and PoE protection module for DITEK's NETS and EXTS rack and wall mount devices.  Mix and match rapid-replacement modules to protect Ethernet, PoE and PoE Extender circuites within the same rack or wall mount housing.

  • Uses SAD and GDT technologies for superior protection
  • Robust 20kA per pair surge current rating
  • Data speeds up to 10GbE without signal degradation

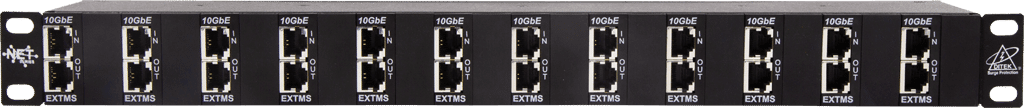

DTK-RM12EXTS

Rack Mount PoE Extender Surge Protector

The DTK-RM12EXTS is a 12-channel, upgradeable, 1U rack mount surge protector designed specifically for PoE extender circuits. Using state-of-the art circuitry, provides best-in-breed surge protection for PoE extender circuits and optionally, Ethernet and PoE. The DTK-RM12EXTS supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-RM12EXTS is ideal for installations with multiple-port mid-span injectors and hybrid network scenarios.

  • Uses SAD and GDT technologies to provide optimal protection for shielded PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • Ready for high-wattage applications
  • Optional modules available to support Ethernet and PoE
  • Supports up to 24 modules in a single enclosure
DATA SHEET INSTALLATION GUIDE

DTK-RM12NETS

Rack Mount Network Surge Protector

The DTK-RM12NETS is a 12-channel, upgradeable, 1U rack mount surge protector that uses state-of-the art circuitry to provide best-in-breed surge protection for shielded Ethernet, PoE and optional PoE extender circuits. The DTK-RM12NETS supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-RM12NETS is ideal for installations with multiple Ethernet cabling feeds that require protection before entering network switches. RMNETS

  • Uses SAD and GDT technologies to provide optimal protection for shielded Ethernet, PoE, PoES and PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • PoE Plus and HiPoE ready for high-wattage applications
  • Optional modules available to support PoE Extender Circuits
  • Supports up to 24 modules in a single enclosure
DATA SHEET

DTK-RM16EXTS

Rack Mount PoE Extender Surge Protector

The DTK-RM16EXTS is a 16-channel, upgradeable, 1U rack mount surge protector designed specifically for PoE extender circuits. Using state-of-the art circuitry, provides best-in-breed surge protection for PoE extender circuits and optionally, Ethernet and PoE. The DTK-RM16EXTS supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-RM16EXTS is ideal for installations with multiple-port mid-span injectors and hybrid network scenarios.

  • Uses SAD and GDT technologeis to provide optimal protection for shielded PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • Ready for high-wattage applications
  • Optional modules available to support Ethernet and PoE
  • Supports up to 24 modules in a single enclosure
DATA SHEET INSTALLATION GUIDE

DTK-RM16NETS

The DTK-RM16NETS is a 16-channel, upgradeable, 1U rack mount surge protector that uses state-of-the art circuitry to provide best-in-breed surge protection for shielded Ethernet, PoE and optional PoE extender circuits. The DTK-RM16NETS supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-RM16NETS is ideal for installations with multiple Ethernet cabling feeds that require protection before entering network switches. RMNETS

  • Uses SAD and GDT technologeis to provide optimal protection for shielded Ethernet, PoE, PoES and PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • PoE Plus and HiPoE ready for high-wattage applications
  • Optional modules available to support PoE Extender Circuits
  • Supports up to 24 modules in a single enclosure
DATA SHEET INSTALLATION GUIDE

DTK-RM24EXTS

The DTK-RM24EXTS is a 24-channel, 1U rack mount surge protector designed specifically for PoE extender circuits Using state-of-the art circuitry, provides best-in-breed surge protection for PoE extender circuits and optionally, Ethernet and PoE. The DTK-RM24EXTS supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-RM24EXTS is ideal for installations with multiple-port mid-span injectors and hybrid network scenarios.

  • Uses SAD and GDT technologies to provide optimal protection for shielded PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • Ready for high-wattage applications
  • Optional modules available to support Ethernet and PoE
DATA SHEET INSTALLATION GUIDE

DTK-WM4EXTS

Wall Mount 4 Channel PoE Extender Surge Protector

The DTK-WM4EXTS is a 4-channel, wall mount surge protector that uses state-of-the-art circuitry to provide best-in-breed surge protection for PoE extender circuits. It supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-WM4EXTS is ideal for smaller installations where Ethernet cabling feeds require protection before entering network switches.

  • Uses SAD and GDT technologies to provide optimal protection for shielded Ethernet, PoE and PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • PoE Plus and HiPoE ready for high-wattage applications
  • Optional module available to support Ethernet and PoE Circuits
DATA SHEET INSTALLATION GUIDE

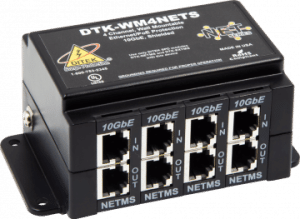

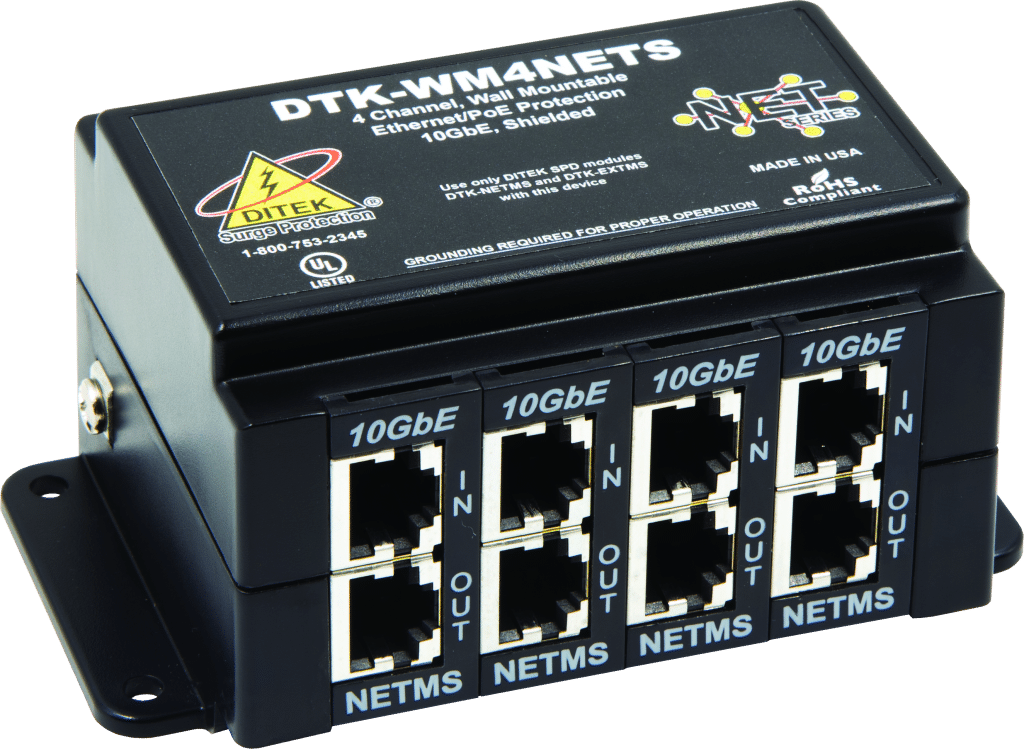

DTK-WM4NETS

Wall Mount 4 Channel Network Surge Protector

The DTK-WM4NETS is a 4-channel, wall mount surge protector that uses state-of-the-art circuitry to provide best-in-breed surge protection for shielded Ethernet, PoE and optional PoE extender circuits. It supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-WM4NETS is ideal for smaller installations where Ethernet cabling feeds require protection before entering network switches.

Also available with 8-Channels!

  • Uses SAD and GDT technologies to provide optimal protection for shielded Ethernet, PoE, PoES and PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • PoE Plus and HiPoE ready for high-wattage applications
  • Optional modules available to support PoE Extender Circuits
DATA SHEET INSTALLATION GUIDE 360° PRODUCT VIEW

DTK-WM8EXTS

Wall Mount 8 Channel PoE Extender Surge Protector

The DTK-WM8EXTS is an 8-channel, wall mount surge protector that uses state-of-the-art circuitry to provide best-in-breed surge protection for PoE extender circuits. It supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-WM8EXTS is ideal for smaller installations where Ethernet cabling feeds require protection before entering network switches.

  • Uses SAD and GDT technologeis to provide optimal protection for PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • PoE Plus and HiPoE ready for high-wattage applications
  • Optional modules available to support Ethernet and PoE circuits
DATA SHEET INSTALLATION GUIDE

DTK-WM8NETS

Wall Mount 8 Channel Network Surge Protector

The DTK-WM8NETS is an 8-channel, wall mount surge protector that uses state-of-the-art circuitry to provide best-in-breed surge protection for shielded Ethernet, PoE and optional PoE extender circuits. It supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-WM8NETS is ideal for smaller installations where Ethernet cabling feeds require protection before entering network switches.

Also available with 4-Channels!

  • Uses SAD and GDT technologies to provide optimal protection for shielded Ethernet, PoE, PoES and PoE extender circuits
  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • PoE Plus and HiPoE ready for high-wattage applications
  • Optional modules available to support PoE Extender Circuits
DATA SHEET INSTALLATION GUIDE 360° PRODUCT VIEW
