CM-CMX Plus Series Are a Workhorse for General-Purpose Equipment Protection

DITEK’s CM-CMX Plus Series multi-purpose hardwired industrial surge protectors are ideal for protecting incoming utility power, a variety of industrial equipment, and general purpose applications including HVAC condensers, pool and well pumps, and motors. Models cover all common incoming power types from 120/240VAC to 480VAC Three Phase. Also great for protecting outdoor lighting such as for parking lots and highway interchanges.

FEATURED PRODUCT

CM-CMX Plus Series : DTK-120/240CM+

120/240VAC Split Phase Surge Protective Device

DITEK's DTK-120/240CM+ is a multi-purpose surge protective device ideal for protecting HVAC condensers, pool or well pumps, motors and incoming utility power.

  • 50,000 Amp Total Surge Current Rating
  • Diagnostic LED provides indication of power, ground presence and SPD function
  • NEMA 4X weatherproof enclosure
  • UL1449 Listed SPD Type 1
  • 3 Year $7,500 Residential Connected Equipment Warranty

 ADDITIONAL MODELS IN THIS SERIES:

DTK-120/240CMX

120/240VAC Split Phase Surge Protective Device

DITEK's DTK-120/240CMX is a multi-purpose surge protective device ideal for protecting HVAC condensers, pool or well pumps, motors and incoming utility power.

  • Thermally Protected MOV technology
  • NEMA 4X weatherproof enclosure allows for use in harsh environments
  • Diagnostic LED provides visual indication of system power and SPD function
  • UL1449 Listed Type 1 SPD
  • 3 Year $7,500 Residential Connected Equipment Warranty
DATA SHEET INSTALLATION GUIDE

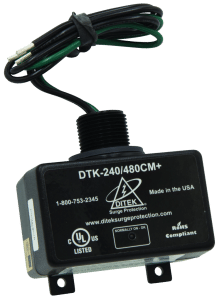

DTK-240/480CM+

240/480VAC Split Phase Surge Protective Device

DITEK's DTK-240/480CM+ is a multi-purpose surge protection device ideal for protecting parking lot lighting and highway lighting systems.

  • 50,000 Amp Total Surge Current Rating
  • Diagnostic LED provides indication of power, ground presence and SPD function
  • NEMA 4X weatherproof enclosure allows for use in harsh environments
  • UL1449 Listed Type 1 SPD
INSTALLATION GUIDE

DTK-2403CMXPLUS

240VAC Three Phase Surge Protective Device

DITEK's CMXPLUS Series of durable, cost-effective surge protective devices are ideal for a variety of industrial equipment. The DTK-2403CMXPLUS offers 240VAC three phase delta surge protection.

  • NEMA 4X enclosure allows for use in harsh environments
  • 75,000 Amp Total Surge Current Rating
  • Diagnostic LED indicates system power and SPD function
  • UL1449 Listed Type 1 SPD
DATA SHEET INSTALLATION GUIDE 360° PRODUCT VIEW

DTK-4803CMXPLUS

480VAC Three Phase Surge Protective Device

DITEK's CMXPLUS Series of durable, cost-effective surge protective devices are ideal for a variety of industrial equipment. The DTK-4803CMXPLUS offers 480VAC three phase delta surge protection.

  • NEMA 4X enclosure allows for use in harsh environments
  • 75,000 Amp Total Surge Current Rating
  • Diagnostic LED indicates system power and SPD function
  • UL1449 Listed Type 1 SPD
DATA SHEET INSTALLATION GUIDE 360° PRODUCT VIEW

DTK-6003CMXPLUS

600VAC Three Phase Surge Protective Device

DITEK's CMXPLUS Series of durable, cost-effective surge protective devices are ideal for a variety of industrial equipment. The DTK-6003CMXPLUS offers 600VAC three phase delta surge protection.

  • NEMA 4X enclosure allows for use in harsh environments
  • 75,000 Amp Total Surge Current Rating
  • Diagnostic LED indicates system power and SPD function
  • UL1449 Listed Type 1 SPD
DATA SHEET INSTALLATION GUIDE 360° PRODUCT VIEW
