Deflector Series Surge Protectors Raise Alarms to Ensure Critical Circuit Protection

DITEK’s unique Deflector Series rapid-replacement surge protectors protect critical AC power circuits and attached equipment, and raise alerts when protection has been compromised. Mission-critical equipment using 120V or 240V AC power has a potent ally in these models that help ensure the equipment does not go unprotected. Should protection be compromised, visible, audible, and dry-contact triggered alerts all work to immediately capture staff attention on site and remotely. Modular design lets staff reinstate protection in seconds without any tools – ensuring that critical equipment is well protected for high reliability and long life.

FEATURED PRODUCT

Deflector Series : DTK-120X12

Total Surge Solution for Fire Alarm Systems

Visual, audible, smart. The DTK-120X12 sets a new standard for 120VAC power and low voltage surge protection. It will protect your system power and up to twelve (12) pairs of SLC, IDC/PIV, NAC, network or dialer circuits. This combo unit comes equipped with a DTK-DF120M, 120VAC, replaceable surge protection module and a 6-position mounting base for replaceable, low voltage surge modules. Adding DITEK's 2MHLP/2MHTP modules for data/signal and dialer circuit protection provides a complete solution for your fire alarm system.

  • 120VAC power surge protection with audible alarm and Form C dry contacts for remote monitoring of surge protection status
  • 6-position mounting base for 2MHLP/2MHTP modules, protects up to (12) SLC, NAC, IDC, PIV, network or dialer circuits (modules must be ordered separately)
  • Low voltage module cover ships blank to allow for application of installation company logo sticker
  • Audible alarm can be silenced via the included time delay switch (24 hours)
  • 3/4" NPT pre-drilled holes for AC power conduit
  • (1) 3/4" NPT and (2) 1/2" NPT pre-drilled holes for low voltage wiring conduit
  • UL1449 Listed Type 2 SPD
  • UL1283 Listed EMI/RFI

 ADDITIONAL MODELS IN THIS SERIES:

DTK-240X12

Total Surge Solution for Fire Alarm Systems

Visual, audible, smart. The DTK-240X12 sets a new standard for 240VAC power and low voltage surge protection.

  • 240VAC power surge protection with audible alarm and Form C dry contacts for remote monitoring of surge protection status
  • 6-position mounting base for 2MHLP/2MHTP modules, protects up to (12) SLC, NAC, IDC, PIV, network or dialer circuits (modules must be ordered separately)
  • Low voltage module cover ships blank to allow for application of installation company logo sticker
  • Audible alarm can be silenced via the included time delay switch (24 hours)
  • 3/4" NPT pre-drilled holes for AC power conduit
  • (1) 3/4" NPT and (2) 1/2" NPT pre-drilled holes for low voltage wiring conduit
  • UL1449 Listed Type 2 SPD
  • UL1283 Listed EMI/RFI
DATA SHEET INSTALLATION GUIDE

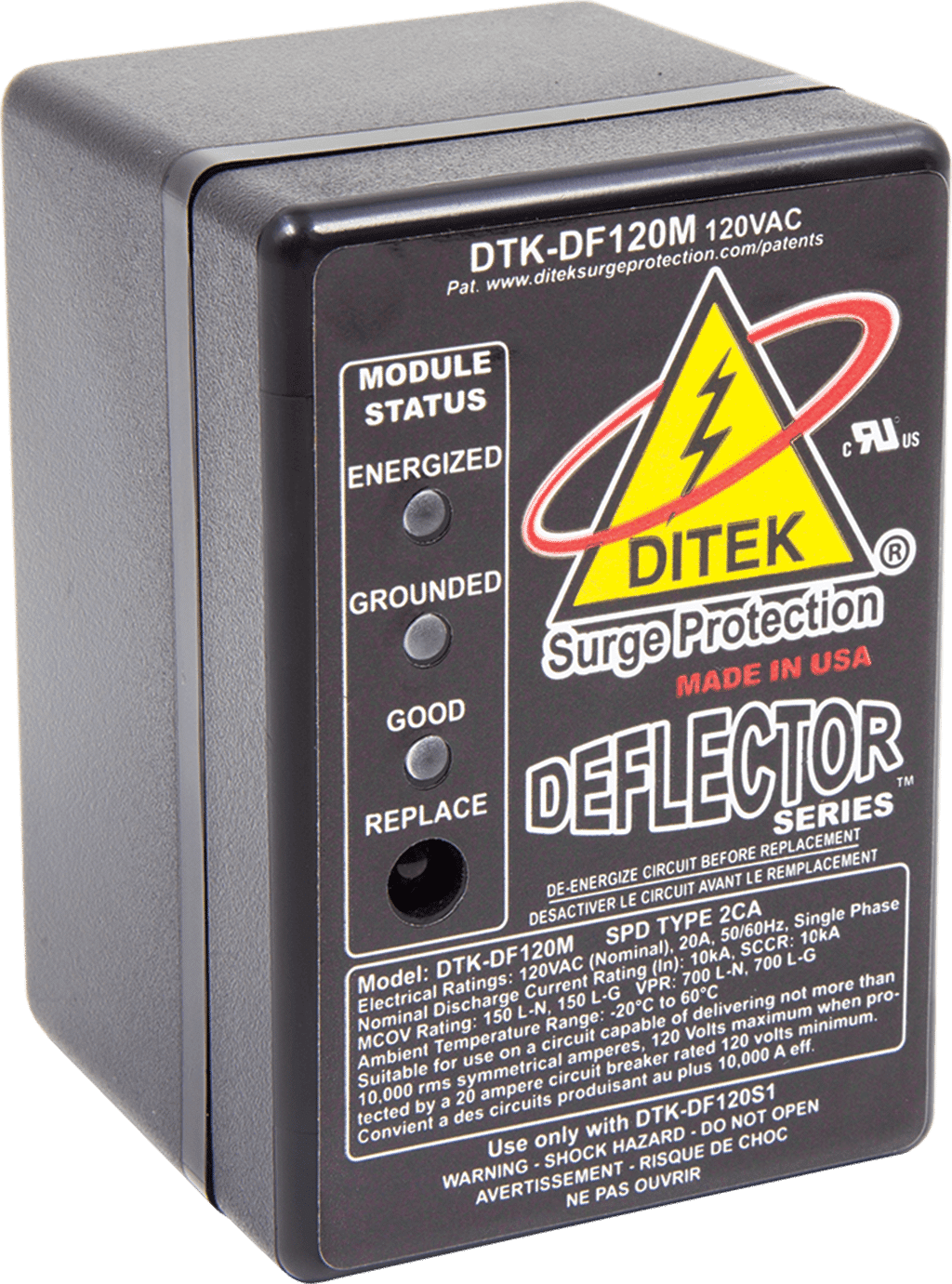

DTK-DF120M

Deflector Series Replacement Surge Protection Module

The DTK-DF120M Deflector Series Rapid-Replacement surge protection module provides a new level of protection for 120VAC critical load circuits. The DTK-DF120M features an LED health status indicator that flashes and sounds an audible alarm on the modules’ wall mountable base when protection has been compromised.  Its patented Rapid-Replacement design offers quick and easy installation with no additional wiring required. Simply remove the compromised module from its base and replace it with a new one in seconds!

  • Audible alarm sounds when protection is compromised or protection module is removed
  • Separate LED indicators for power, ground and protection status
  • Rapid-Replacement modules for ease of installation
  • Dry contacts for remote notification when service is required
DATA SHEET 360° PRODUCT VIEW

DTK-DF120S1

Series Connected Surge Protector with Dry Contacts and Audible Alarm

Visual, audible, smart. DITEK's Deflector DTK-DF120S1 sets a new standard for 120VAC Power protection. Its patented design provides maximum critical load protection by minimizing AC supply voltage spikes and isolating incoming surges that originate from lightning or other sources.

  • Audible alarm sounds when protection is compromised or protection module is removed
  • Separate LED indicators for power, ground and protection status
  • Rapid-Replacement modules for ease of installation (DTK-DF120M)
  • Dry contacts for remote notification when service is required
  • UL1449 Listed Type 2 SPD
  • UL1283 EMI/RFI noise filtering ensures clean power to connected equipment
DATA SHEET INSTALLATION GUIDE 360° PRODUCT VIEW

DTK-DF120S12

Twelve Circuit Series Connected Surge Protective Device with Dry Contacts and Audible Alarm

The DTK-DF120S12 was specifically designed to protect convenience stores and multi-pump fueling stations from unnecessary damage caused by electrical surge events. This unique new configuration delivers a wide range of benefits to store operators by protecting sensitive fuel pump control systems and more from damage while ensuring that protection is operating correctly. Visual, audible, smart.

The Deflector's patented design provides maximum critical load protection by minimizing AC supply voltage spikes and isolating incoming surges that originate from lightning or other sources.

  • Protects up to twelve 120VAC single phase critical loads
  • Audible alarm sounds when protection is compromised or protection module is removed
  • Separate LED indicators for power, ground and protection status
  • Rapid-Replacement modules for ease of installation (DTK-DF120M)
  • Dry contacts for remote notification when service is required
  • UL1449 Listed Type 2 SPD
  • UL1283 EMI/RFI noise filtering ensures clean power to connected equipment
INSTALLATION GUIDE

DTK-DF240M

Deflector Series Replacement Surge Protection Module

The DTK-DF240M Deflector Series Rapid-Replacement surge protection module provides a new level of protection for 120VAC critical load circuits. The DTK-DF240M features an LED health status indicator that flashes and sounds an audible alarm on the modules’ wall mountable base when protection has been compromised.  Its patented Rapid-Replacement design offers quick and easy installation with no additional wiring required. Simply remove the compromised module from its base and replace it with a new one in seconds.

  • Audible alarm sounds when protection is compromised or protection module is removed
  • Separate LED indicators for power, ground and protection status
  • Rapid-Replacement modules for ease of installation
  • Dry contacts for remote notification when service is required
DATA SHEET

DTK-DF240S1

Series Connected Surge Protector with Dry Contacts and Audible Alarm

Visual, audible, smart. DITEK's Deflector DTK-DF240S1 sets a new standard for 240VAC Power protection. Its patented design provides maximum critical load protection by minimizing AC supply voltage spikes and isolating incoming surges that originate from lightning or other sources.

  • Audible alarm sounds when protection is compromised or protection module is removed
  • Separate LED indicators for power, ground and protection status
  • Rapid-Replacement modules for ease of installation (DTK-DF240M)
  • Dry contacts for remote notification when service is required
  • UL1449 Listed Type 2 SPD
  • UL1283 EMI/RFI noise filtering ensures clean power to connected equipment

DATA SHEET INSTALLATION GUIDE 360° PRODUCT VIEW

DTK-DF240S12

Twelve Circuit Series Connected Surge Protective Device with Dry Contacts and Audible Alarm

Protects up to twelve 240VAC single phase critical loads

  • Audible alarm sounds when protection is compromised or protection module is removed
  • Separate LED indicators for power, ground and protection status
  • Rapid-Replacement modules for ease of installation (DTK-DF120M)
  • Dry contacts for remote notification when service is required
  • UL1449 Listed Type 2 SPD
  • UL1283 EMI/RFI noise filtering ensures clean power to connected equipment
DATA SHEET INSTALLATION GUIDE
