Telco Surge Protector with Snap-Track Base The DTK-2MHLP130BWB from DITEK provides surge protection for two 130V telco circuits in a field-replaceable module with self-resetting fuse. Protect two dialer circuits per module Hybrid design delivers high surge current capacity and reliable voltage clamping for peak protection Field-replaceable modules with hard-wired multi-base mounting system allows you to protect up to ten pairs with a common ground
Telco Surge Protection Module DITEK's DTK-2MHLP130B provides surge protection for two 130V telco circuits in a field-replaceable module with self-resetting fuse. With required snap-track bases, protect up to 10 pairs with a common ground. Protects two dialer circuits per module Hybrid design delivers high surge current capacity and reliable voltage clamping for peak protection Field-replaceable modular edge card connection with single point ground for fast installation
Coaxial RF Surge Protector for Wireless Communicators Since antennas are external to the building, they become an avenue for damaging transient surges to enter your building and your equipment through the coaxial antenna cable. The DTK-VSPSMA surge protector with state-of-the-art circuit technology is ideal for protecting external antenna leads to cellular transmitters, bi-directional amplifiers (BDA) and distributed antenna systems (DAS). SMA type male to female connectors protect a variety of coaxial devices Tightest clamping available provides superior protection Grounding lug for easy termination 0Hz - 3 GHz frequency range
Coaxial RF Surge Protector for Wireless Communicators Since antennas are external to the building, they become an avenue for damaging transient surges to enter your building and your equipment through the coaxial antenna cable. The DTK-VSPN surge protector with state-of-the-art circuit technology is ideal for protecting external antenna leads to cellular transmitters, bi-directional amplifiers (BDA) and distributed antenna systems (DAS). N type connectors protect a variety of coaxial devices Tightest clamping available provides superior protection Grounding lug for easy termination 0Hz - 4.75 GHz frequency range
Alarm Panel Dialer Surge Protector The DTK-MRJ31XSCPWP is a modular surge protection device designed to protect fire and security system dialer circuits. This point of use surge protector can be easily installed in series with the circuit. Single pair RJ31X dialer circuit protection with patch cord Universal modular jack with external grounding screw Sneak Current Protection - SCP: 150mA self-resetting fuse protects against repeated surges
Intrusion Alarm Protection Kit DITEK's DTK-APK1 security control panel surge protection kit includes one DTK-1F single outlet protector and one DTK-MRJ31XSCPWP alarm dialer protector.

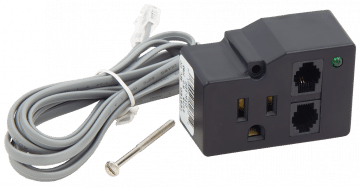

Single Outlet 120VAC Surge Protective Device with Telco Protection DITEK's DTK-1FF is a single outlet surge protector that provides AC power and telco protection for alarm panel transformers, fax and answering machines. Single AC outlet and RJ11 telco protection with patch cord included Center screw secures to outlet and can also secure a connected transformer Diagnostic LED indicates AC power and SPD function UL1449 Listed Type 3 SPD
Single Outlet 120VAC Surge Protective Device DITEK's DTK-1F is a single outlet surge protector that provides AC power protection for alarm panel transformers and point of use appliances. Single AC outlet protects critical equipment Center screw secures to outlet and can also secure a connected transformer Diagnostic LED indicates AC power and SPD function UL1449 Listed Type 3 SPD

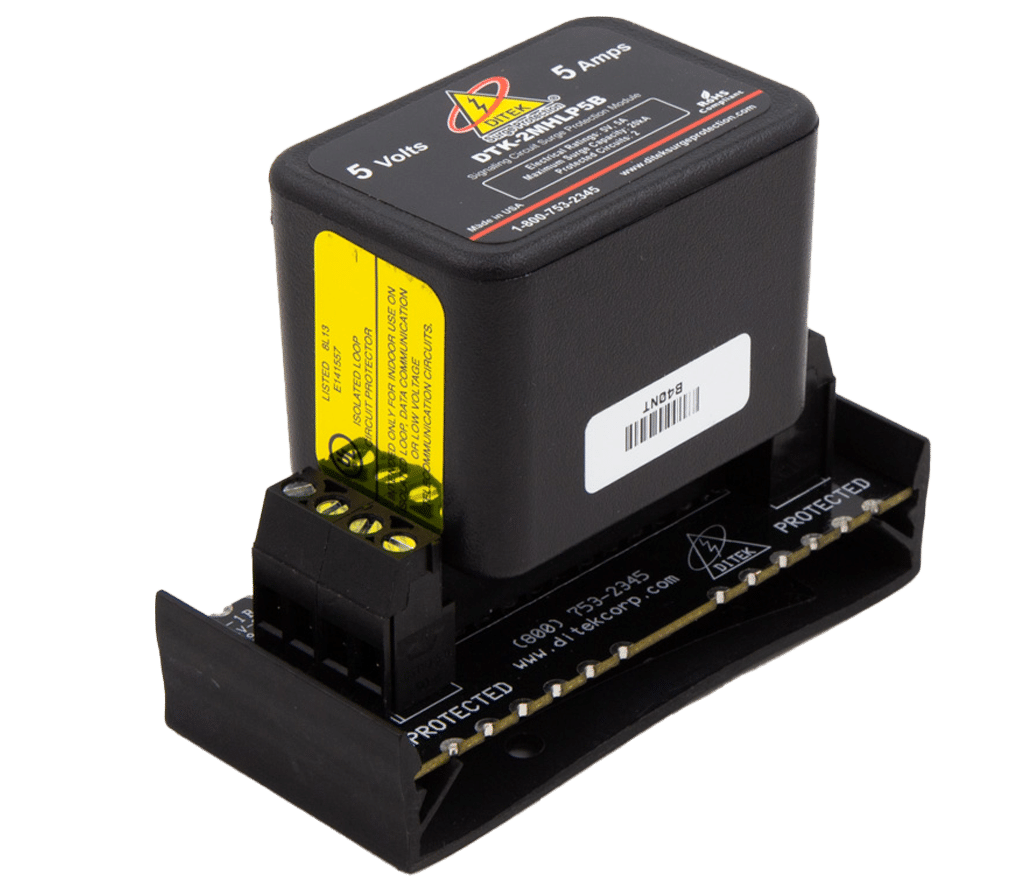

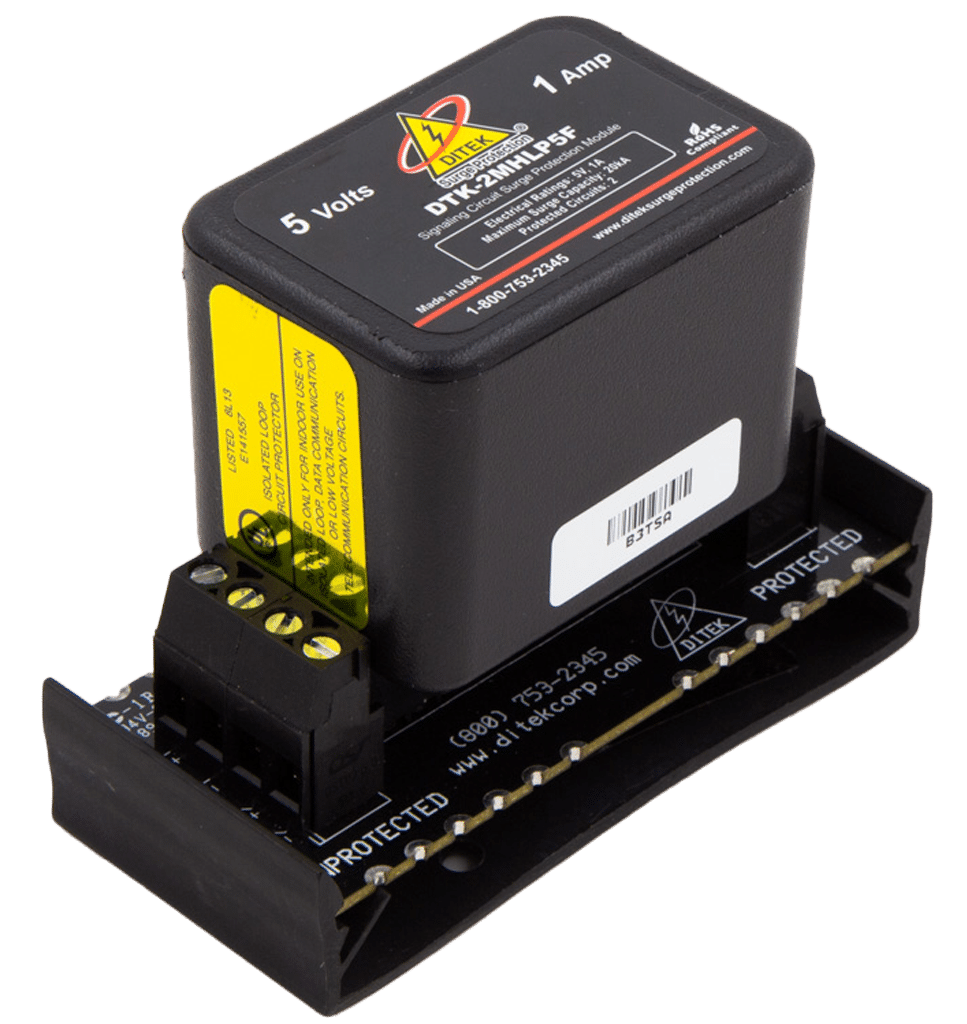

Data & Signaling Circuit Modular Surge Protector with Snap-Track Base The DTK-2MHLP5FWB provides surge protection with exclusive load removal technology for two 5V circuits. Protects two 5V pairs per module Multi-stage SAD technology provides the best possible protection Field-replaceable modules with hard-wired multi-base mounting system allows you to protect up to ten pairs with a common ground
Signaling Circuit Surge Protection Module The DTK-2MHLP5F provides surge protection with exclusive load removal technology for two 5V alarm system loop circuits. With required snap-track bases, protect up to 10 pairs with a common ground. Protects two 5V pairs per module Multi-stage SAD technology provides the best possible protection Field-replaceable modules with hard-wired multi-base mounting system allows you to protect up to ten pairs with a common ground
