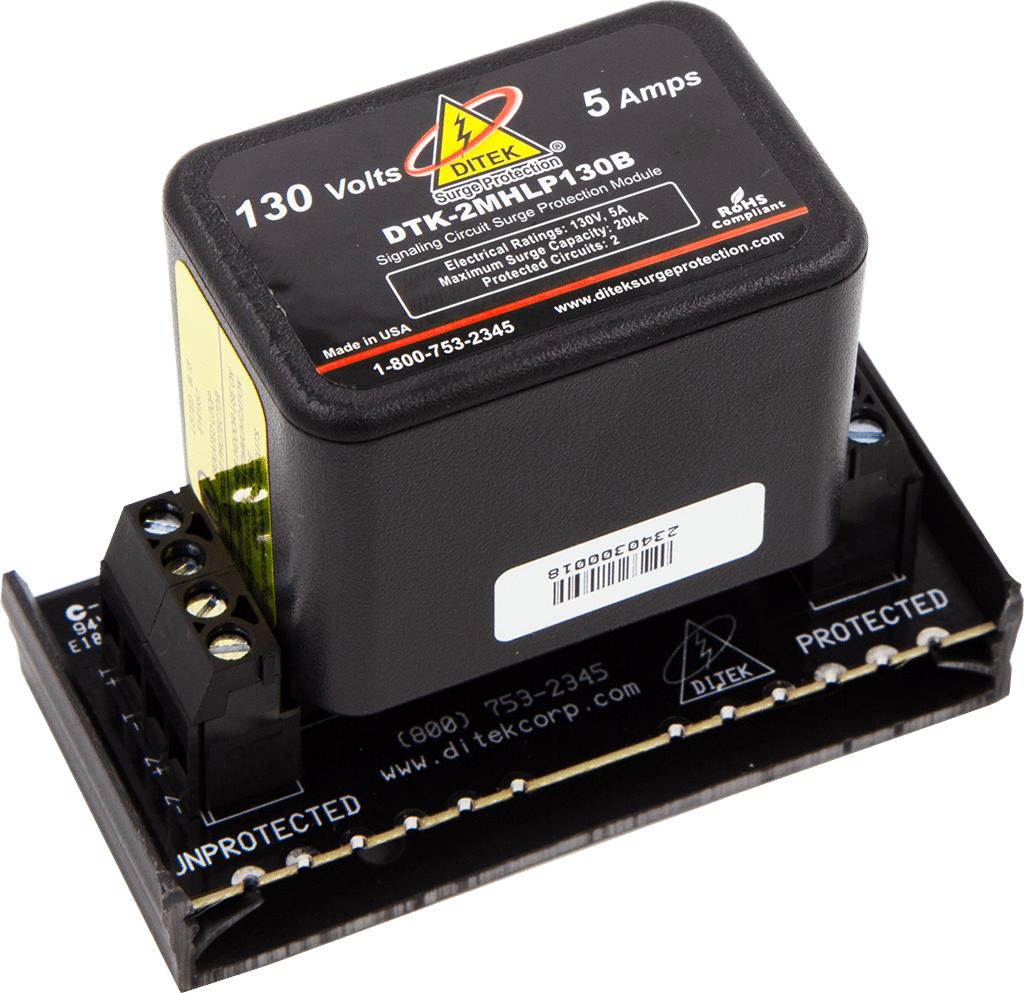

Telco Surge Protector with Snap-Track Base The DTK-2MHLP130BWB from DITEK provides surge protection for two 130V telco circuits in a field-replaceable module with self-resetting fuse. Protect two dialer circuits per module Hybrid design delivers high surge current capacity and reliable voltage clamping for peak protection Field-replaceable modules with hard-wired multi-base mounting system allows you to protect up to ten pairs with a common ground

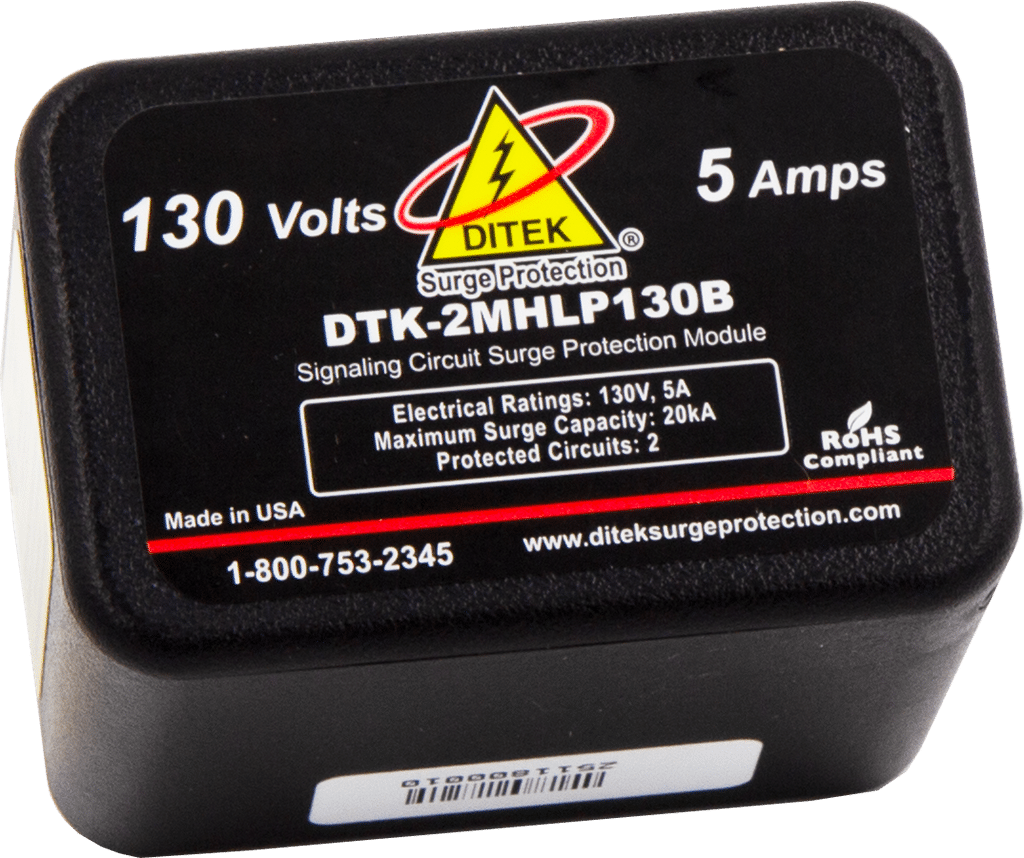

Telco Surge Protection Module DITEK's DTK-2MHLP130B provides surge protection for two 130V telco circuits in a field-replaceable module with self-resetting fuse. With required snap-track bases, protect up to 10 pairs with a common ground. Protects two dialer circuits per module Hybrid design delivers high surge current capacity and reliable voltage clamping for peak protection Field-replaceable modular edge card connection with single point ground for fast installation
Alarm Panel Dialer Surge Protector The DTK-MRJ31XSCPWP is a modular surge protection device designed to protect fire and security system dialer circuits. This point of use surge protector can be easily installed in series with the circuit. Single pair RJ31X dialer circuit protection with patch cord Universal modular jack with external grounding screw Sneak Current Protection - SCP: 150mA self-resetting fuse protects against repeated surges
Telco Circuit Surge Protector DITEK's LVLP surge protectors are used in multiple low voltage security applications. The DTK-4LVLPRUV protects four 130V hardwired telco pairs. Protects alarm panel telco circuits Suiable for both AC and DC circuits. Series connection, parallel function adds no resistance to circuits
Telco Circuit Surge Protector DITEK's LVLP surge protectors are used in multiple low voltage security applications. The DTK-2LVLPRUV is ideal for two 130V hardwired telco pairs. Protects alarm panel telco circuits Suiable for both AC and DC circuits. Series connection, parallel function adds no resistance to circuits

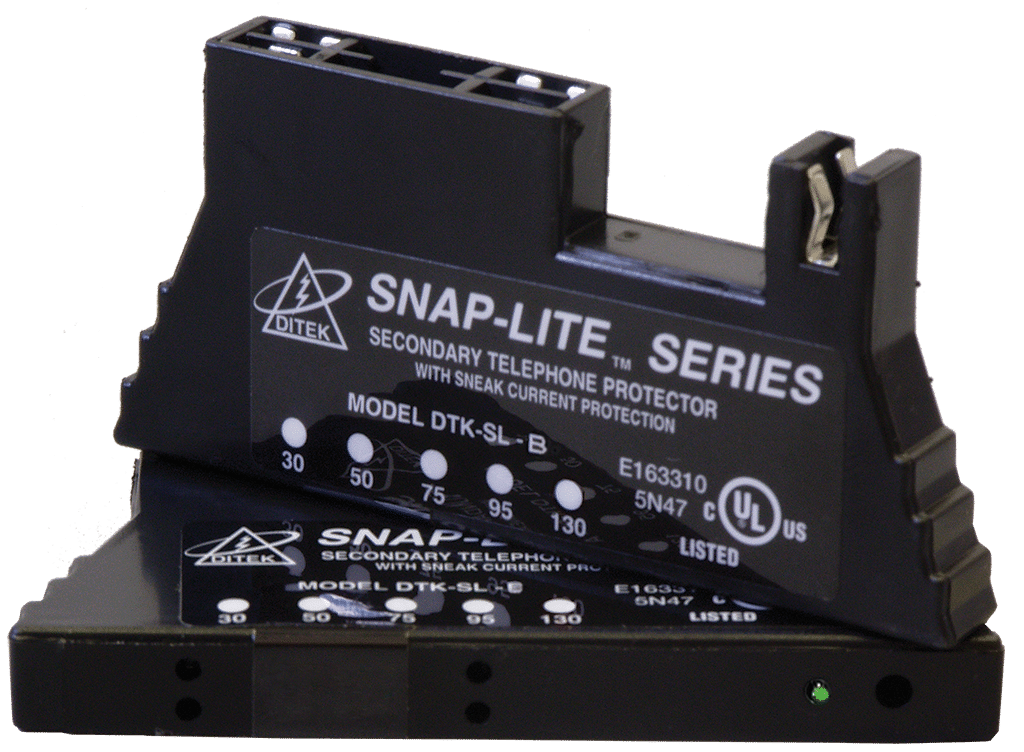

66 Block Quick-Connect Surge Protector The DTK-SL30B offers 30V, 66 block snap on surge protection for analog and 25V speaker circuits. Quick connect module, no bridge strips required LED diagnostic indicator Each Snap-Lite protects one analog pair Field-replaceable, with built-in diagnostic test points

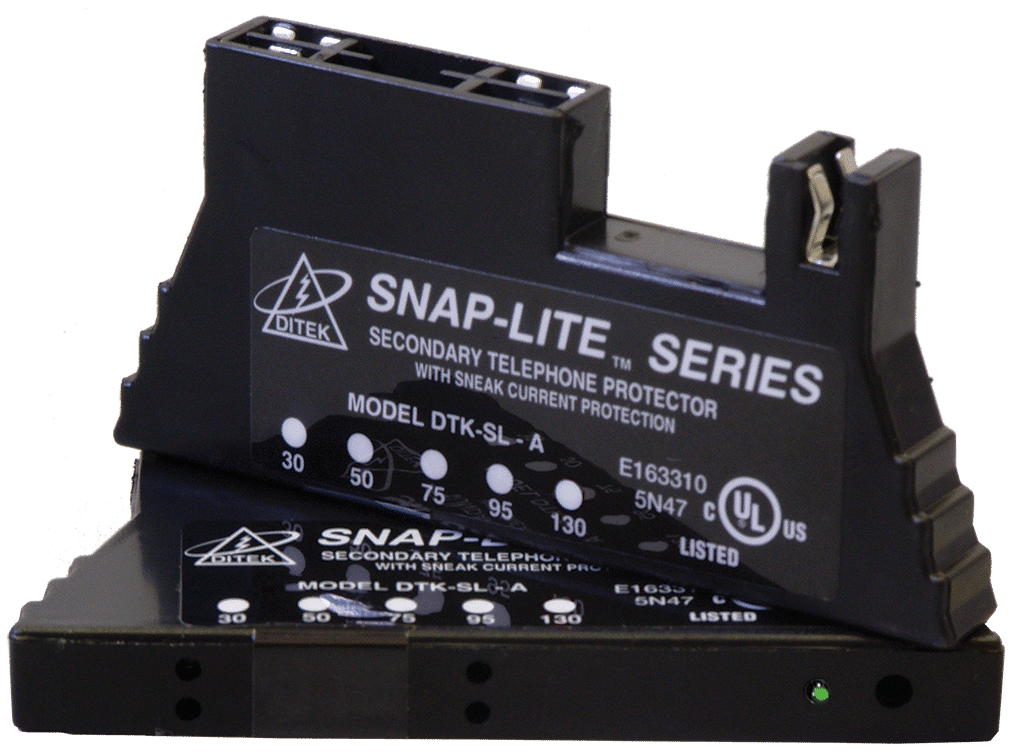

66 Block Quick-Connect Surge Protector The DTK-SL30A offers 30V, 66 block snap on surge protection for analog and 25V speaker circuits, 150mA self-resetting fuse. Quick connect module, no bridge strips required LED diagnostic indicator Each Snap-Lite protects one analog pair Field-replaceable, ith built-in diagnostic test points
66 Block Quick-Connect Surge Protector The DTK-SL130A offers 130V, 66 block snap on surge protection for POTS or CO telco circuits, 150mA self-resetting fuse. Quick connect module, no bridge strips required LED diagnostic indicator Each Snap-Lite protects one analog pair Field-replaceable, with built-in diagnostic test points

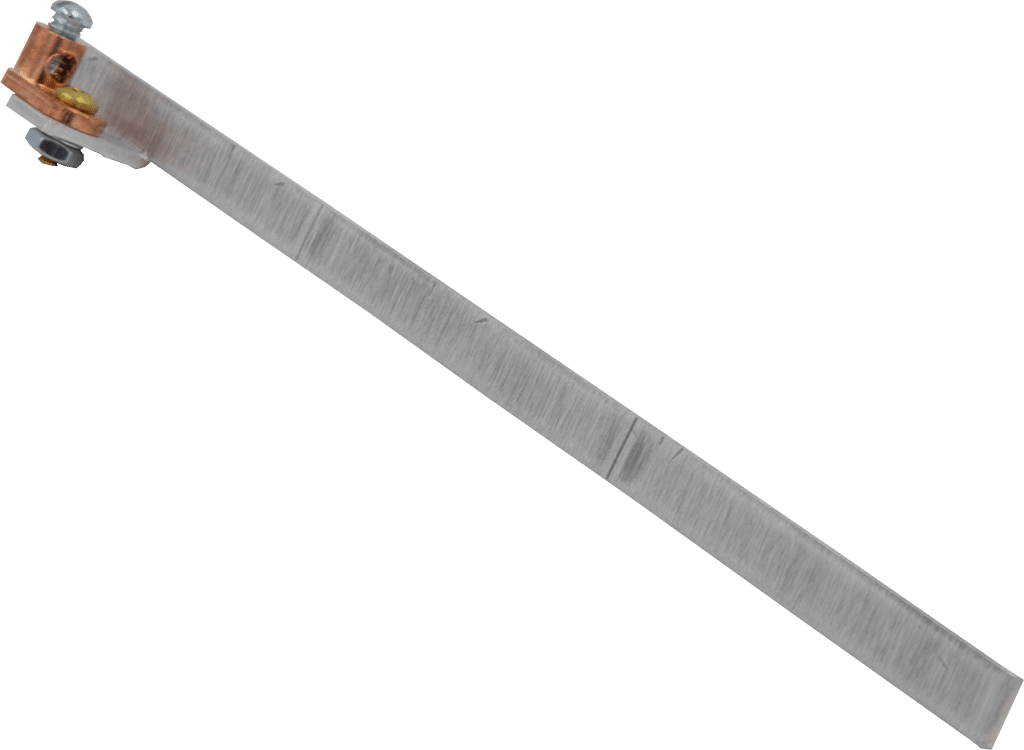

Ground Bar Ground Bar for S and SL series protectors
